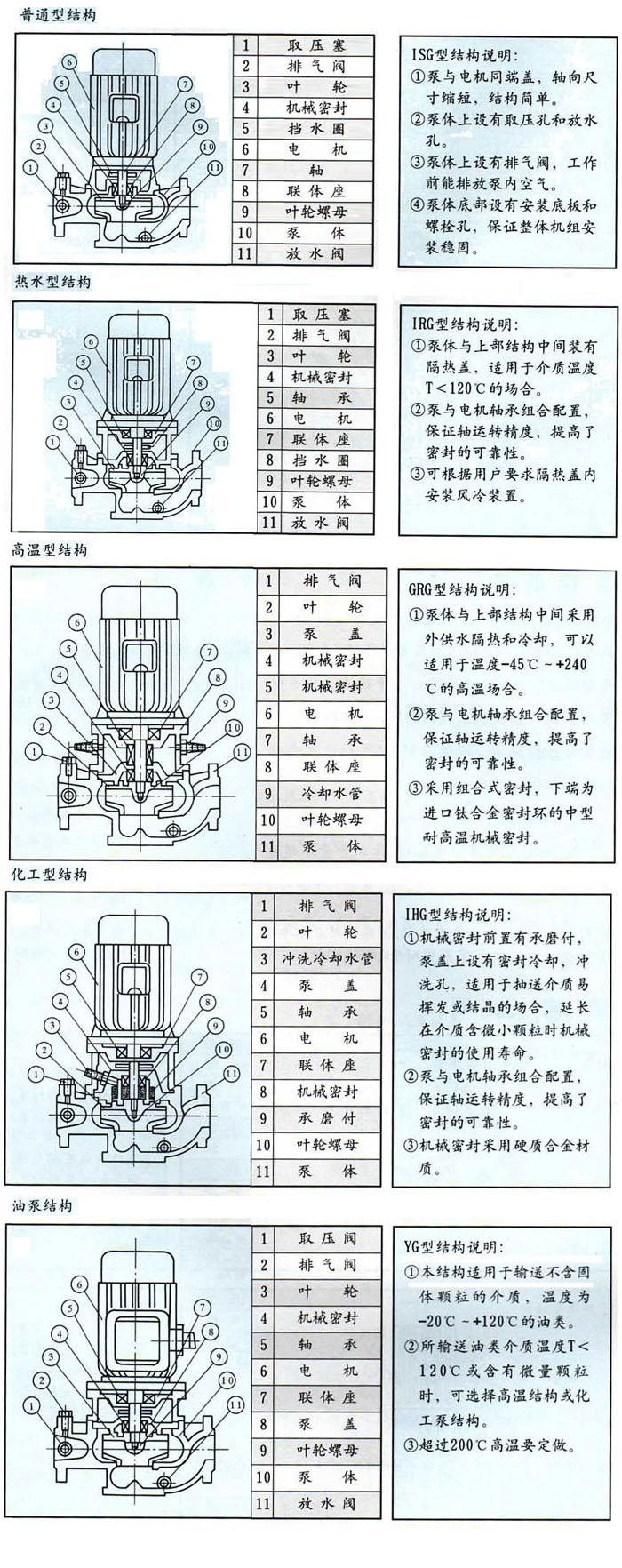

管道离心泵规格型号及结构图

  管道离心泵规格型号及结构图

  管道离心泵是供输送清水及物理化学性质类似于清水的其它液体之用,适用于工业和城市给排水、高层建筑增压送水、园林喷灌、消防增压、远距离输送、暖通制冷循环、浴室等冷暖水循环增压及设备配套。

  离心泵的工作原理:离心泵所以能把水送出去是由于离心力的作用。水泵在工作前,泵体和进水管必须灌满水形成真空状态,当叶轮快速转动时,叶片促使水很快旋转,旋转着的水在离心力的作用下从叶轮中飞去,泵内的水被抛出后,叶轮的中心部分形成真空区域。水原的水在大气压力(或水压)的作用下通过管网压到了进水管内。这样循环不已,就可以实现连续抽水。在此值得一提的是:离心泵启动前一定要向泵壳内充满水以后,方可启动,否则将造成泵体发热,震动,出水量减少,对水泵造成损坏(简称“气蚀”)造成设备事故!

  今天上海沈泉管道离心泵厂家就为大家简单的讲解一下它的性能参数以及结构图等方面的知识内容,好让大家能够对这款优秀的离心泵有一个更好的了解,下面就请大家跟着小编一起来看看吧。小编主要以立式管道离心泵为讲解。

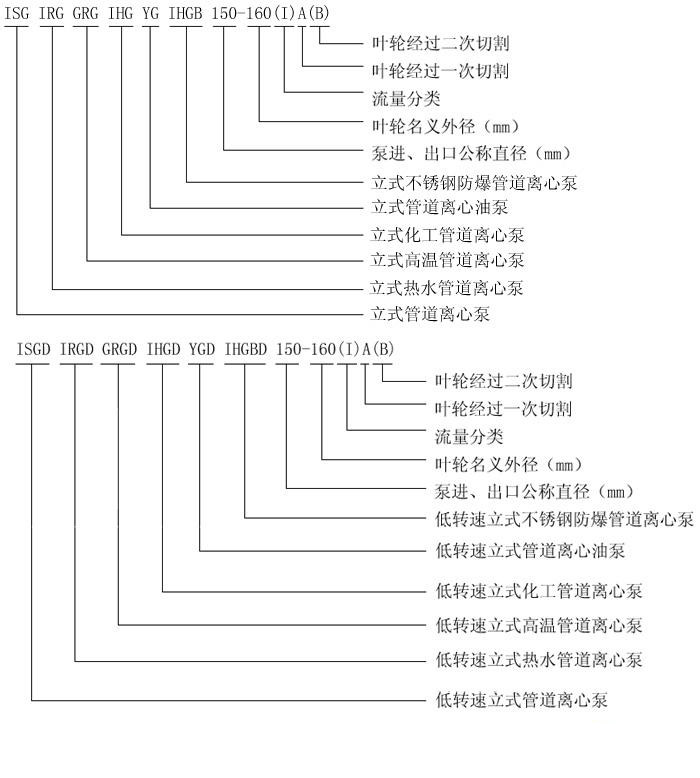

  一、ISG立式管道离心泵型号意义:

ISG立式管道离心泵型号意义

  二、ISG系列立式管道离心泵性能参数选型表:

ISG立式管道离心泵型号管道离心泵流量立式管道泵扬程电机功率 (kw)转速效率汽蚀余量
(m3/h)(m)(r/min)(%)(m)
15-801.580.182900342.3
20-1102.5150.372900342.3
20-1602.5321.12900252.3
25-1104150.552900422.3
25-1254200.752900362.3
25-125A3.6160.552900352.3
25-1604321.52900322.3
25-160A3.7281.12900312.3
32-1004.512.50.552900562.3
32-100(I)6.312.51.12900542
32-1254.5200.752900452.3
32-125(I)6.3201.12900432.3
32-125(I)A4160.552900432.3
32-1604.5321.12900442.3
32-160A4.5251.12900422.3
32-160(I)6.3322.22900422.3
32-2004.55032900452.3
32-200A4402.22900402.3
32-200(I)6.35042900332
40-1006.312.50.552900542.3
40-100A5.6100.372900522.3
40-1256.3201.12900462.3
40-125A5.6160.752900452.3
40-1606.3322.22900402.3
40-160A5.9281.52900392.3
40-160B5.2241.12900382.3
40-2006.35042900332.3
40-200A5.94432900312.3
40-200B5.5382.22900292.3
40-2506.3807.52900282.3
40-250A5.9705.52900282.3
40-250B5.56042900272.3
型号流量扬程电机功率 (kw)转速效率汽蚀余量
(m3/h)(m)(r/min)(%)(m)
40-100(I)12.512.51.12900622.3
40-125(I)12.5201.52900602.3
40-125(I)A11.217.21.12900582.3
40-160(I)12.53232900522.3
40-160(I)A11.7282.22900512.3
40-160(I)B10.522.51.52900502.3
40-200(I)12.5505.52900462.3
40-200(I)A11.74042900452.3
40-200(I)B10.53532900442.3
40-250(I)12.580112900382.3
40-250(I)A11.7707.52900382.3
40-250(I)B10.8607.52900372.3
50-10012.512.51.12900622.3
50-12512.5201.52900582.3
50-125A11.217.21.12900572.3
50-16012.53232900522.3
50-160A11.7282.22900512.3
50-160B10.522.51.52900502.3
50-20012.5505.52900462.3
50-200A11.744.542900452.3
50-200B10.53532900442.3
50-25012.580112900382.3
50-250A11.7707.52900382.3
50-250B10.8607.52900372.3
型号流量扬程电机功率 (kw)转速效率汽蚀余量
(m3/h)(m)(r/min)(%)(m)
50-100(I)2512.51.52900692.5
50-100(I)A22.4101.12900672.5
50-125(I)252032900682.5
50-125(I)A22.4162.22900662.5
50-160(I)253242900632.5
50-160(I)A23.42842900622.5
50-160(I)B21.62432900582.5
50-200(I)25507.52900582.5
50-200(I)A23.4447.52900572.5
50-200(I)B21.6375.52900552.5
50-250(I)2580152900502.5
50-250(I)A23.470112900502.5
50-250(I)B21.660112900492.5
50-315(I)25125302900402.5
50-315(I)A23.4110222900402.5
50-315(I)B21.69318.52900392.5
65-1002512.51.52900692.5
65-100A22.4101.12900672.5
65-125252032900682.5
65-125A22.4162.22900662.5
65-160253242900632.5
65-160A23.42842900622.5
65-160B21.62432900582.5
型号流量扬程电机功率 (kw)转速效率汽蚀余量
(m3/h)(m)(r/min)(%)(m)
65-20025507.52900582.5
65-200A23.4447.52900572.5
65-200B21.6375.52900552.5
65-2502580152900502.5
65-250A23.470112900502.5
65-250B21.660112900492.5
65-31525125302900402.5
65-315A23.4110222900402.5
65-315B21.69318.52900392.5
65-100(I)5012.532900733
65-100(I)A44.8102.22900723
65-125(I)50205.5290072.53
65-125(I)A44.81642900713
65-160(I)50327.52900713
65-160(I)A46.8287.52900703
65-160(I)B43.2245.52900693
65-200(I)5050152900673
65-200(I)A46.844112900663
65-200(I)B43377.52900653
65-250(I)5080222900593
65-250(I)A46.87018.52900593
65-250(I)B4360152900583
65-315(I)50125372900543
65-315(I)A45.8105302900543
65-315(I)B4393302900533
型号流量扬程电机功率 (kw)转速效率汽蚀余量
(m3/h)(m)(r/min)(%)(m)
80-1005012.532900733
80-100A44.8102.22900723
80-12550205.5290072.53
80-125A44.81642900713
80-16050327.52900713
80-160A46.8287.52900703
80-160B43.2245.52900693
80-2005050152900673
80-200A46.844112900663
80-200B43377.52900653
80-2505080222900593
80-250A46.87018.52900593
80-250B4360152900583
80-31550125372900543
80-315A45.8105302900543
80-315B4393302900533
80-315C4185222900513
80-35050150552900663
80-350A44142452900653
80-350B40135372900633
型号流量扬程电机功率 (kw)转速效率汽蚀余量
(m3/h)(m)(r/min)(%)(m)
80-100(I)10012.55.52900764.5
80-100(I)A891042900744.5
80-125(I)10020112900764.5
80-125(I)A89167.52900744.5
80-160(I)10032152900764.5
80-160(I)A93.528112900744.5
80-160(I)B86.424112900724.5
80-200(I)10050222900744
80-200(I)A93.54418.52900734
80-200(I)B86.437152900714
80-250(I)1008037290069>4.0
80-250(I)A93.570302900684
80-250(I)B86.460302900664
80-315(I)100125752900664
80-315(I)A93.5110552900664
80-315(I)B86.493452900654
80-315(I)C8285372900634
型号流量扬程电机功率 (kw)转速效率汽蚀余量
(m3/h)(m)(r/min)(%)(m)
100-10010012.55.52900764.5
100-100A891042900744.5
100-12510020112900764.5
100-125A89167.52900744.5
100-16010032152900764.5
100-160A93.528112900744.5
100-160B86.424112900724.5
100-20010050222900744
100-200A93.54418.52900734
100-200B86.437152900714
100-25010080372900694
100-250A93.570302900684
100-250B86.460302900664
100-315100125752900664
100-315A93.5110552900664
100-315B86.493452900654
100-100(I)16012.5112900734.5
100-125(I)16020152900744.5
100-125(I)A14316112900724.5
100-160(I)16032222900795.6
100-160(I)A1502818.52900765
100-200(I)16050372900795.2
100-200(I)A15045302900744.5
100-200(I)B13840222900724.5
100-250(I)16080552900774.8
100-250(I)A14070452900724.5
100-250(I)B10065372900704.5
型号流量扬程电机功率 (kw)转速效率汽蚀余量
(m3/h)(m)(r/min)(%)(m)
100-350100150902900574
100-350A87142752900754
100-350B82135552900754
125-10016012.5112900824
125-100A143107.52900774
125-12516020152900804
125-125A14316112900774
125-16020032302900784
125-160A18728222900764
125-160B18024.518.52900734
125-20020050452900775.5
125-200A18744372900765.5
125-200B17237302900755.5
125-25020080752900755
125-250A18770552900745.5
125-250B17260452900735.5
125-3152001251102900705
125-315A187110902900705
125-315B17293752900695
125-315C16078552900675
型号流量扬程电机功率 (kw)转速效率汽蚀余量
(m3/h)(m)(r/min)(%)(m)
150-12516020112900764
150-125A150167.52900774
150-16016032222900754
150-160A1502818.52900764
150-160B14024152900734
150-20016050372900775.5
150-200A15044302900765.5
150-200B14038222900755.5
150-25020080752900755
150-250A18770552900745.5
150-250B17260452900735.5
150-3152001251102900705
150-315A187110902900705
150-315B17293752900695
ISGD立式管道离心泵低转速型号管道泵流量立式管道泵扬程电机功率 (kw)转速
(m3/h)(m)(r/min)
40-125(I)6.350.551450
40-160(I)6.380.551450
40-160(I)A5.560.551450
40-200(I)6.312.50.751450
40-200(I)A5.8110.551450
40-250(I)6.3201.51450
40-250(I)A5.8171.11450
50-1256.350.551450
50-1606.380.551450
50-160A5.560.551450
50-2006.312.50.751450
50-200A5.8110.551450
50-2506.3201.51450
50-250A5.8171.11450
50-125(I)12.550.551450
50-160(I)12.580.751450
50-160(I)A1160.551450
50-200(I)12.512.51.11450
50-200(I)A11.2100.751450
50-250(I)12.5202.21450
50-250(I)A11.717.51.51450
50-250(I)B10131.11450
50-315(I)12.53241450
50-315(I)A11.72831450
50-315(I)B102131450
型号流量扬程电机功率 (kw)转速
(m3/h)(m)(r/min)
65-12512.550.551450
65-16012.580.751450
65-160A1160.551450
65-20012.512.51.11450
65-200A11.2100.751450
65-25012.5202.21450
65-250A11.717.51.51450
65-250B10131.11450
65-31512.53241450
65-315A11.72831450
65-315B102131450
65-125(I)2550.751450
65-160(I)2581.51450
65-160(I)A2261.11450
65-200(I)2512.52.21450
65-200(I)A23.3111.51450
65-250(I)252031450
65-250(I)A22.215.82.21450
65-250(I)B2012.81.541450
65-315(I)25325.51450
65-315(I)A22.52641450
65-315(I)B202131450
型号流量扬程电机功率 (kw)转速
(m3/h)(m)(r/min)
80-125255,0.751450
80-1602581.51450
80-160A2261.11450
80-2002512.52.21450
80-200A23.3111.51450
80-250252031450
80-250A22.215.82.21450
80-250B2012.81.51450
80-31525325.51450
80-315A22.52641450
80-315B202131450
80-125(I)5051.51450
80-160(I)5082.21450
80-160(I)A44.761.51450
80-160(I)B43.25.81.51450
80-200(I)5012.541450
80-200(I)A44.71031450
80-250(I)50205.51450
80-250(I)A461741450
80-250(I)B40.51331450
80-315(I)5032111450
80-315(I)A4627.97.51450
80-315(I)B40.5215.51450
型号流量扬程电机功率 (kw)转速
(m3/h)(m)(r/min)
100-1255051.51450
100-1605082.21450
100-160A4661.51450
100-2005012.541450
100-200A44.71031450
100-25050205.51450
100-250A461741450
100-250B40.51331450
100-3155032111450
100-315A4627.97.51450
100-315B40.5215.51450
100-125(I)8052.21450
100-160(I)80831450
100-160(I)A726.52.21450
100-200(I)8012.55.51450
100-200(I)A721041450
100-250(I)8020111450
100-250(I)A7517.57.51450
100-250(I)B69155.51450
100-315(I)8032151450
100-315(I)A7527.5111450
100-315(I)B7024111450
100-400(I)8050221450
100-400(I)A754418.51450
100-400(I)B7038151450
型号流量扬程电机功率 (kw)转速
(m3/h)(m)(r/min)
125-12510052.21450
125-160100841450
125-160A87641450
125-20010012.57.51450
125-200A89105.51450
125-250100220111450
125-250A93.517.57.51450
125-250B87157.51450
125-31510032151450
125-315A9127111450
125-315B8724111450
125-40010050301450
125-400A9444221450
125-400B8737.518.51450
125-200(I)16012.5111450
125-200(I)A143107.51450
125-250(I)16020151450
125-250(I)A14717111450
125-250(I)B134147.51450
125-315(I)16032221450
125-315(I)A1502818.51450
125-315(I)B13824151450
125-400(I)16050371450
125-400(I)A15044301450
125-400(I)B13838301450
型号流量扬程电机功率 (kw)转速
(m3/h)(m)(r/min)
150-20016012.5111450
150-200A143107.51450
150-25016020151450
150-250A14717111450
150-250B134147.51450
150-31516032221450
150-315A1502818.51450
150-315B13824151450
150-40016050371450
150-400A15044301450
150-400B13838301450
150-200(I)20012.5151450
150-200(I)A17910111450
150-250(I)2002018.51450
150-250(I)A18717.5151450
150-250(I)B17314111450
150-315(I)20032301450
150-315(I)A18728221450
150-315(I)B1732418.51450
150-400(I)20050451450
150-400(I)A18744371450
150-400(I)B17337.5301450
型号流量扬程电机功率 (kw)转速
(m3/h)(m)(r/min)
200-20020012.5151450
200-200A17910111450
200-2502002018.51450
200-250A18717.5151450
200-250B17314111450
200-31520032301450
200-315A18728221450
200-315B1732418.51450
200-40020050451450
200-400A18744371450
200-400B17337.5301450
200-200(I)40012.5221450
200-200(I)A3581018.51450
200-250(I)40020301450
200-250(I)A35816221450
200-250(I)B3221318.51450
200-315(I)40032551450
200-315(I)A37428451450
200-315(I)B34624371450
200-400(I)40050901450
200-400(I)A37444751450
200-400(I)B34738551450
200-400(I)C32032451450
型号流量扬程电机功率 (kw)转速
(m3/h)(m)(r/min)
250-25055020451450
250-250A49016371450
250-31555032751450
250-315A51528551450
250-315B47624451450
250-400550501101450
250-400A51544901450
250-400B47637.5751450
300-400720501321450
300-400A662441101450
300-400B60938901450
300-400C56133751450
300-460720652001450
300-460A662551601450
300-460B609451101450
300-460C56138901450
300-510720802501450
300-510A66270.52001450
300-510B609621601450
300-510C56154.51321450
300-2357201855970
型号流量扬程电机功率 (kw)转速
(m3/h)(m)(r/min)
300-235A6571545970
300-3007202875970
300-300A6662475970
300-300B6232155970
300-38072044132970
300-380A66638110970
300-380B6233390970
350-2508002075970
350-250A7151655970
350-3158003290970
350-315A7482875970
350-315B6922475970
350-40080050160970
350-400A75044132970
350-400B69738110970
400-400108012.555970
400-400A9661045970
400-50010802090970
400-500A9661775970
400-500B9351555970
400-625108032132970
400-625A99627110970
400-625B9352490970
500-400120012.575970
500-400A10731055970
500-500120020110970
500-500A11061790970
500-500B10401575970
500-625120032160970
500-625A110627132970
500-625B104024110970

  用户可根据此表选型确定型号,如有特殊情况可咨询我公司技术人员。

  三、ISG系列立式管道离心泵(结构图纸):

ISG系列立式管道离心泵(结构图纸)

  好了,以上内容由上海沈泉泵阀制造有限公司为大家提供,希望能够对大家有所帮助。也希望能够大家看了本文内容后,能够选择出一款适合自己的水泵。

本文参考资料来源: 中国泵阀网 泵阀商务网 中国知网

上一篇:没有了! 下一篇:QW潜水排污泵的型号及字母代表含义

获取报价(留言后专人第一时间快速对接)

已为 2000+ 企业服务

姓 名:

联系电话:

留言备注:

我们的优势

  1. 厂家直销:无中间商,批发价格让利客户
  2. 质量可靠:十多年水泵生产经验
  3. 服务无忧:专业售后,一对一服务
  4. 高性价比:少走弯路,不花冤枉钱
  5. 浏览10次不如咨询1次,3分钟解决您的疑问!
首页 |产品中心 |隔膜泵 |联系我们
